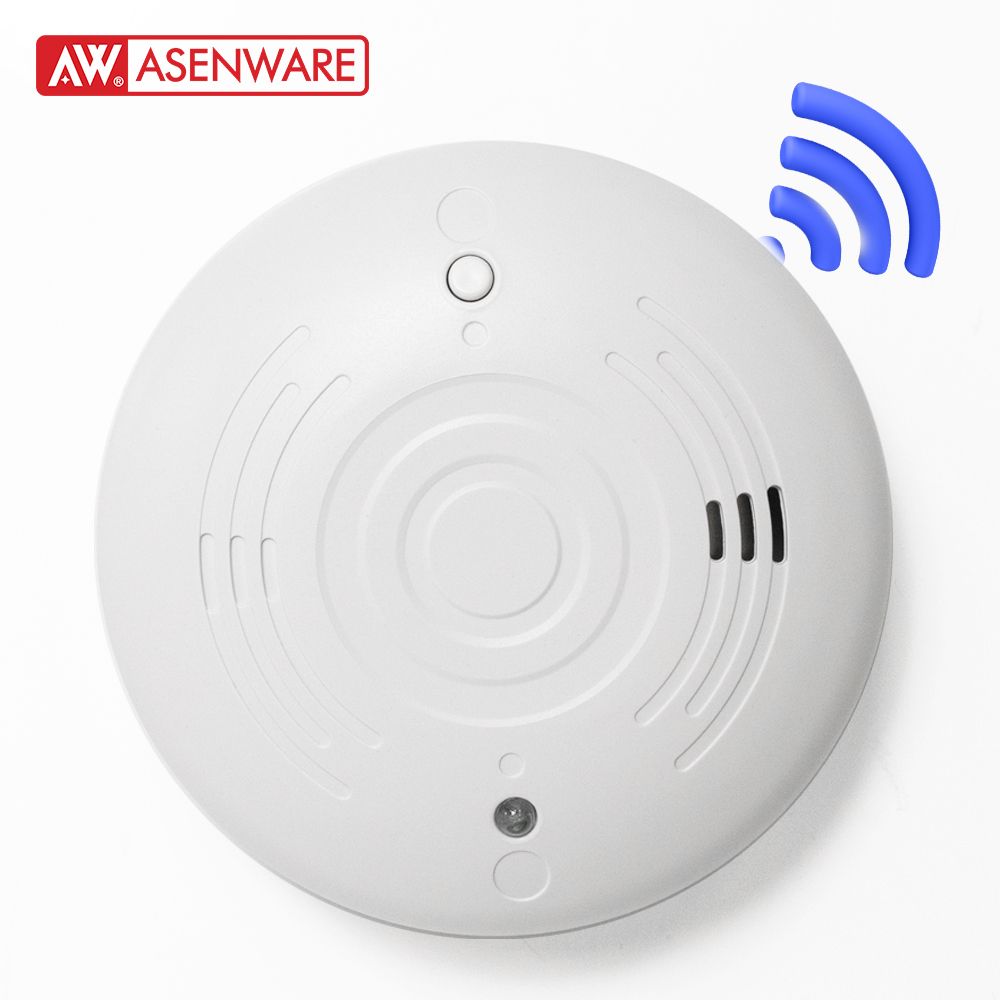

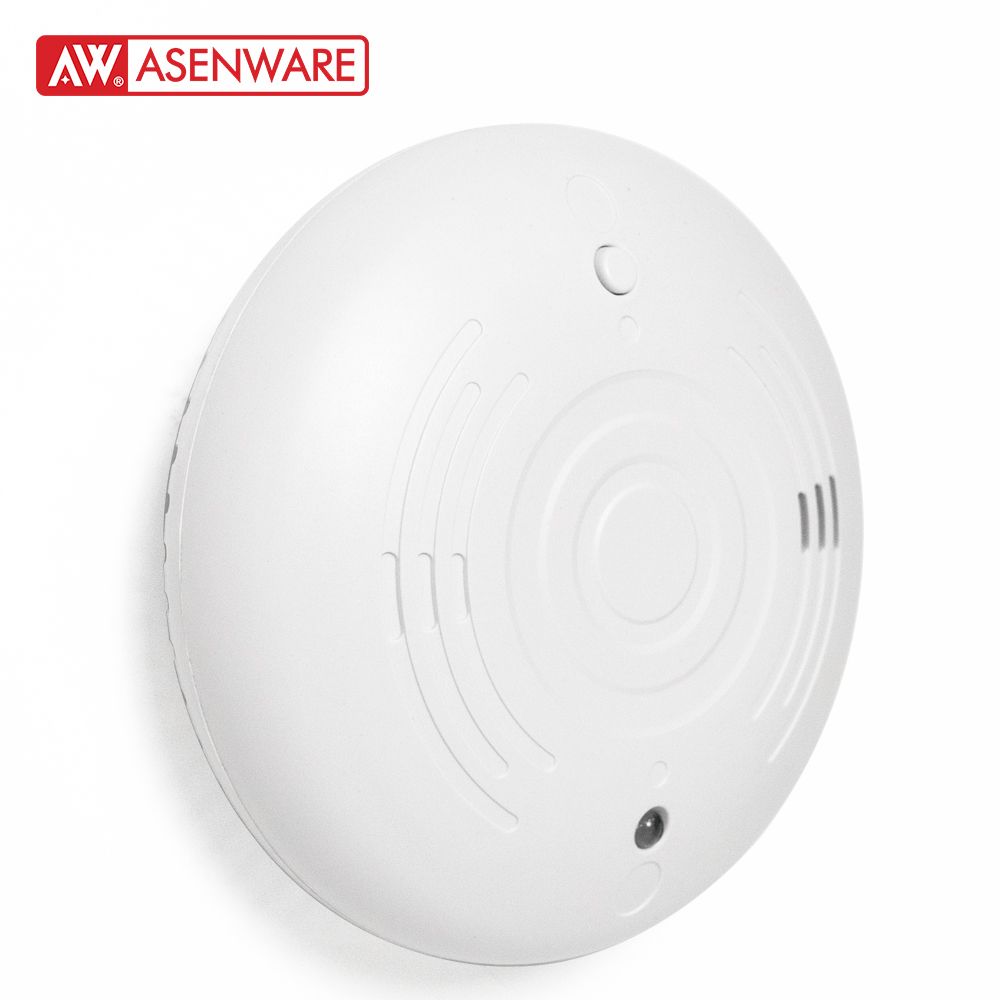

Wireless Addressable Smoke Detector

2. Product Features

2.1 Surface mounting

2.2 LED indicator and buzzer

2.3 No wire connection (easy to install)

2.4 Full electronic coding, through AW-FR100 encoder scene rewrite

2.5 Compatible with all the latest EN standards

3. Technical Parameters

Operating Voltage	3VDC (with battery CR17450 / CR17455)
Operating current	monitoring status≤8uA, alarm status≤120mA
Operating Frequency	433MHz (418MHz to 448MHz)
Smoke Alarm Sensitivity	0.18-0.3dBM
Wireless transmit power	+20dB
Alarm SPL：	≥85dB /3m
Protection class	IP30
Indicator	Normal: blinking Alarm: lighting
Environmental	Temperature range: -10 to 50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing
Materials and colors	ABS, white
Mating Host	AW-FP100 addressable fire alarm control panel
Encoding	Address from 1 to 250 optional

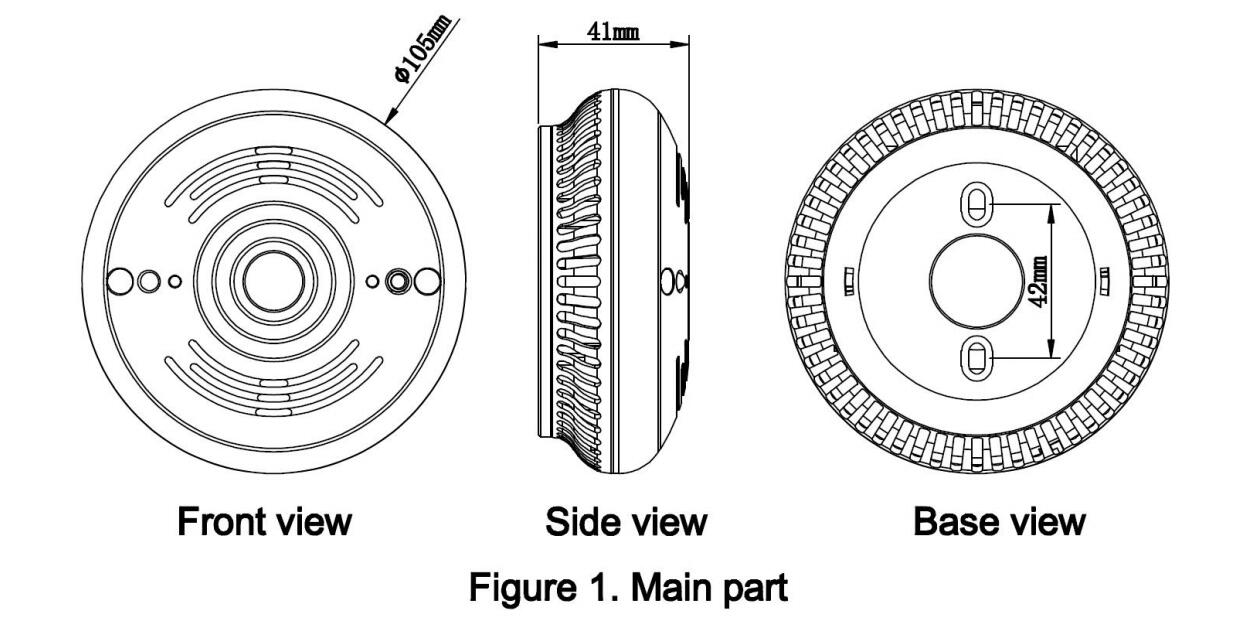

Size	105mm* 105mm* 41mm (with cover)
Weight	About 120g

4. Mounting Base

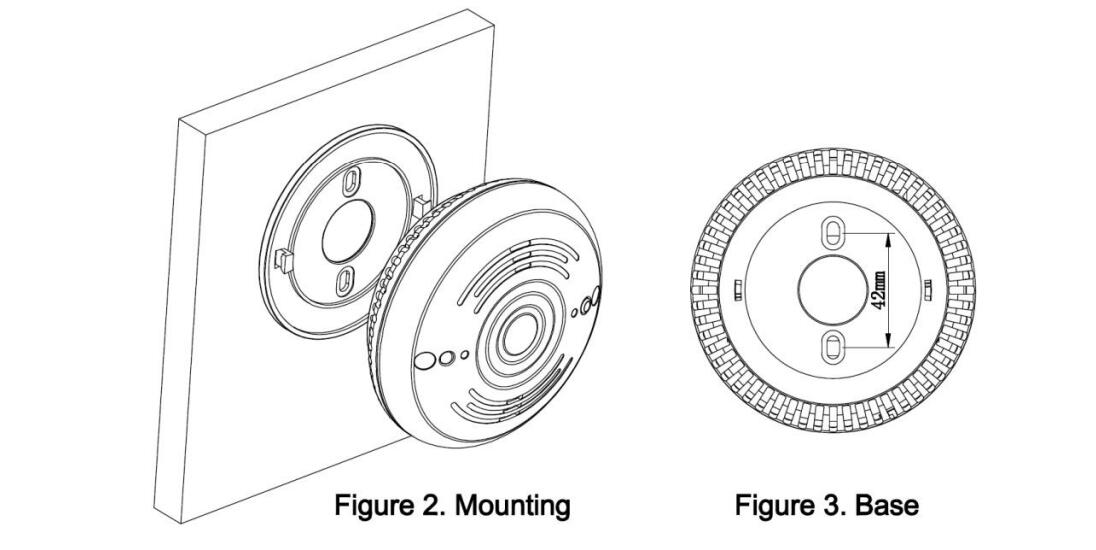

AW-D603L should comply with all local codes. Shown in Figure 2, install the base of the AW-D603L on the wall.

And then insert the main body into the base.

The base dimensions of 105mm*105mm*41mm (Length*Width*Height), mounting hole diameter φ2mm, fixing the

hole spacing is 42mm, shown in Figure 3.

5. Operation

Address coding: The address of AW-D603L, you can use the handheld encoder (AW-PF100) and the wireless

connector to edit/read and write the address wirelessly. Test: When there is no fire alarm, you can press the test button to test. When pressed, both the buzzer and the LED

light will work intermittently (beep and LED blinking). Buzzer silence: When the detector is under alarm condition, press the button on the cover to silence the buzzer. Reset: When the detector is under alarm condition, and the fire alarm is disappeared, press the reset button on the panel

to reset the detector. Normal work: The LED flashes every 1 minute, and the smoke density is detected every 5 seconds, and the buzzer

does not sound. Low battery/fault: The LED flashes every 1 minute and the buzzer will sound once. Smoke sensor failure: every two LED flashes, only the buzzer sounds
