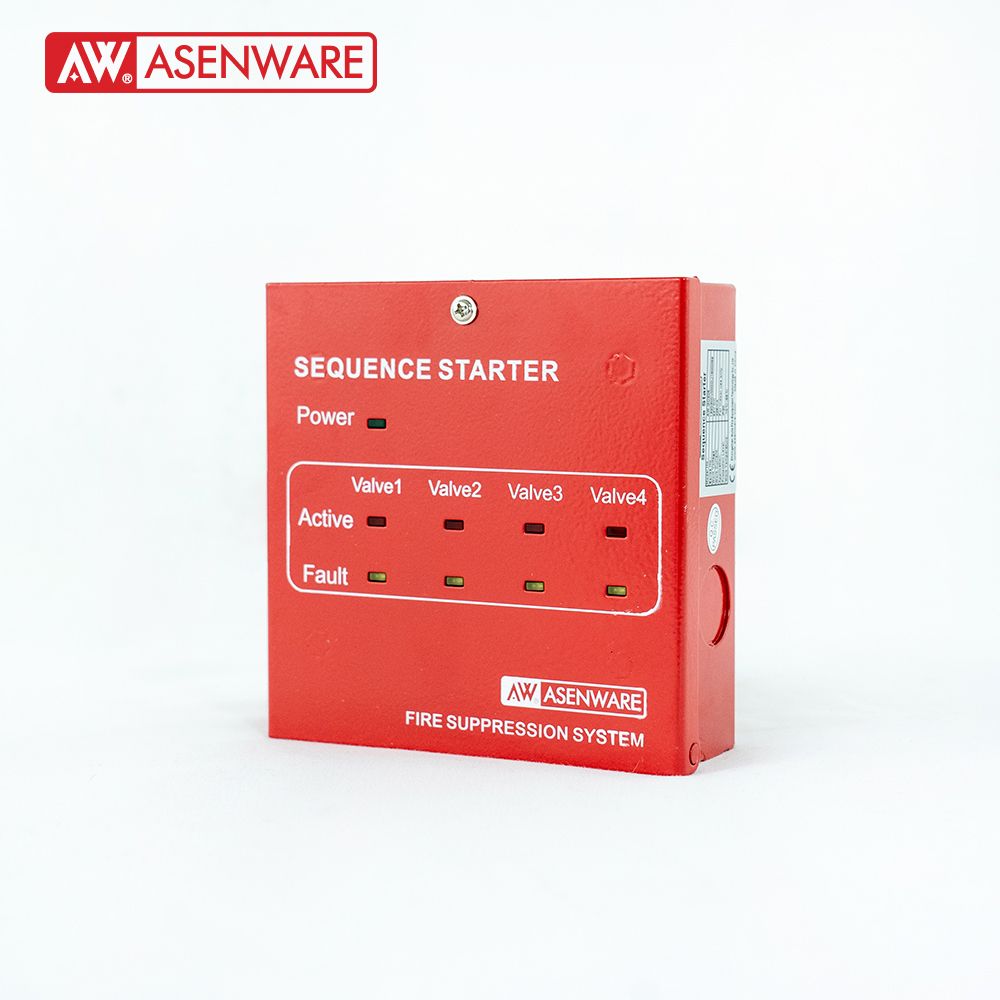

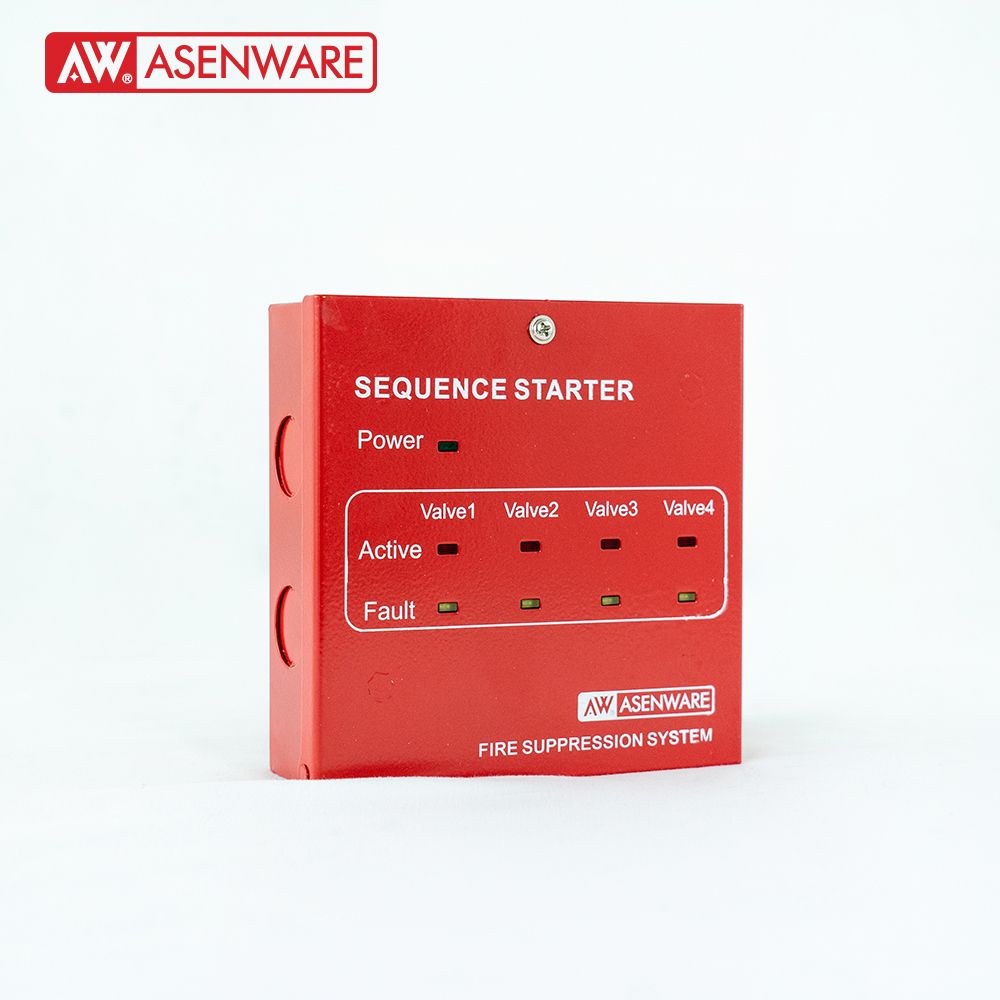

Sequences Starter AW-GD205,Fire Suppression System

Home > Products > Fire Suppression

Description

The module is designed to divide the valve signal output by the panel into four to delay the trigger one by one. There are 9 LED indicators on the module. Among them, the green indicator is the power indicator. When the power is turned on, it will light up. In addition, each valve output has a red indicator and a yellow indicator. When the corresponding output circuit is triggered, the red indicator light of that group will light up. When a circuit fails, the circuit's fault indicator will light up.

Product Features

1.Surface mounting

2.LED indicator

3.MCU intelligent control

4.Automatic fault detection

5.Connection via high-quality terminal 6.blocks Compatible with the latest standards

Technical Specification

Operating Voltage	24V DC
Operating Current	≤25mA
Operating Temperature	10℃~55℃
Operating Temperature	Relative humidity: ≤95% (non-condensing)
Protection Class	IP20
Application	For indoor use only
EM Valve Output Current	2A max
Material and Color	SPCC,Red
