Description

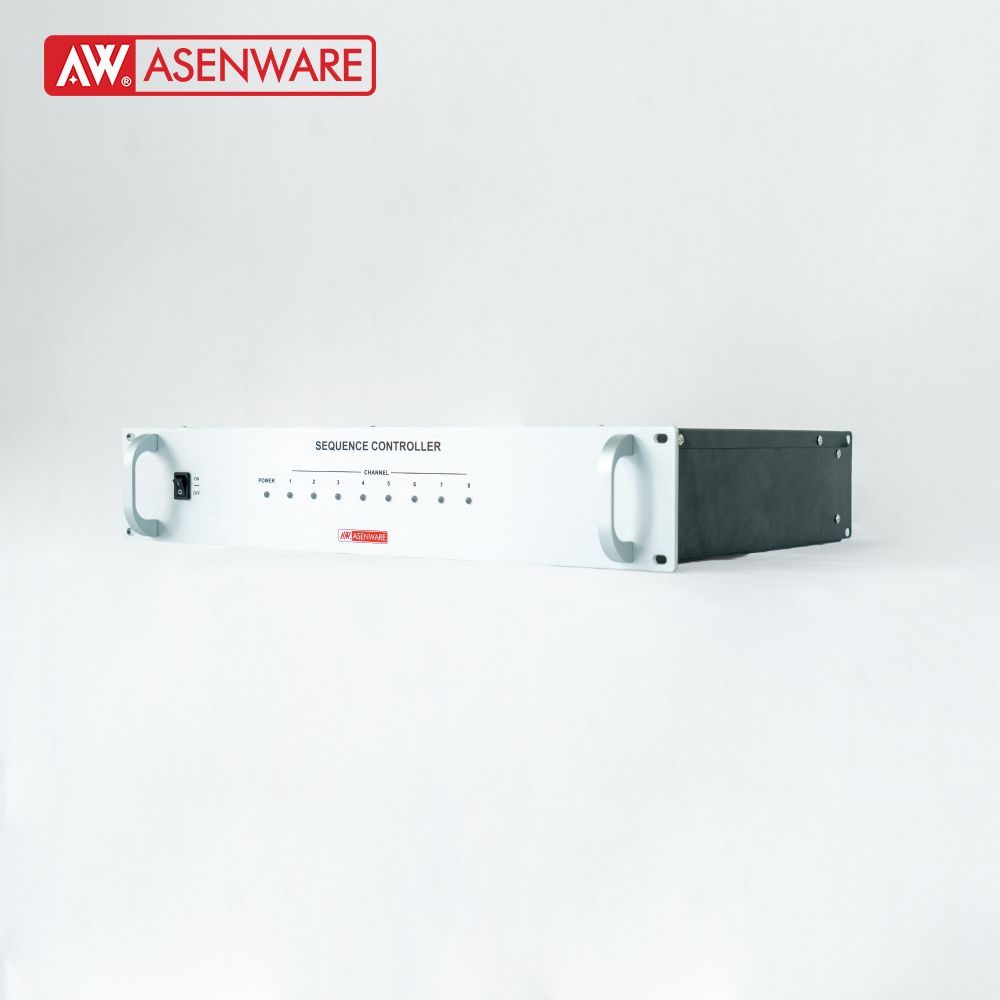

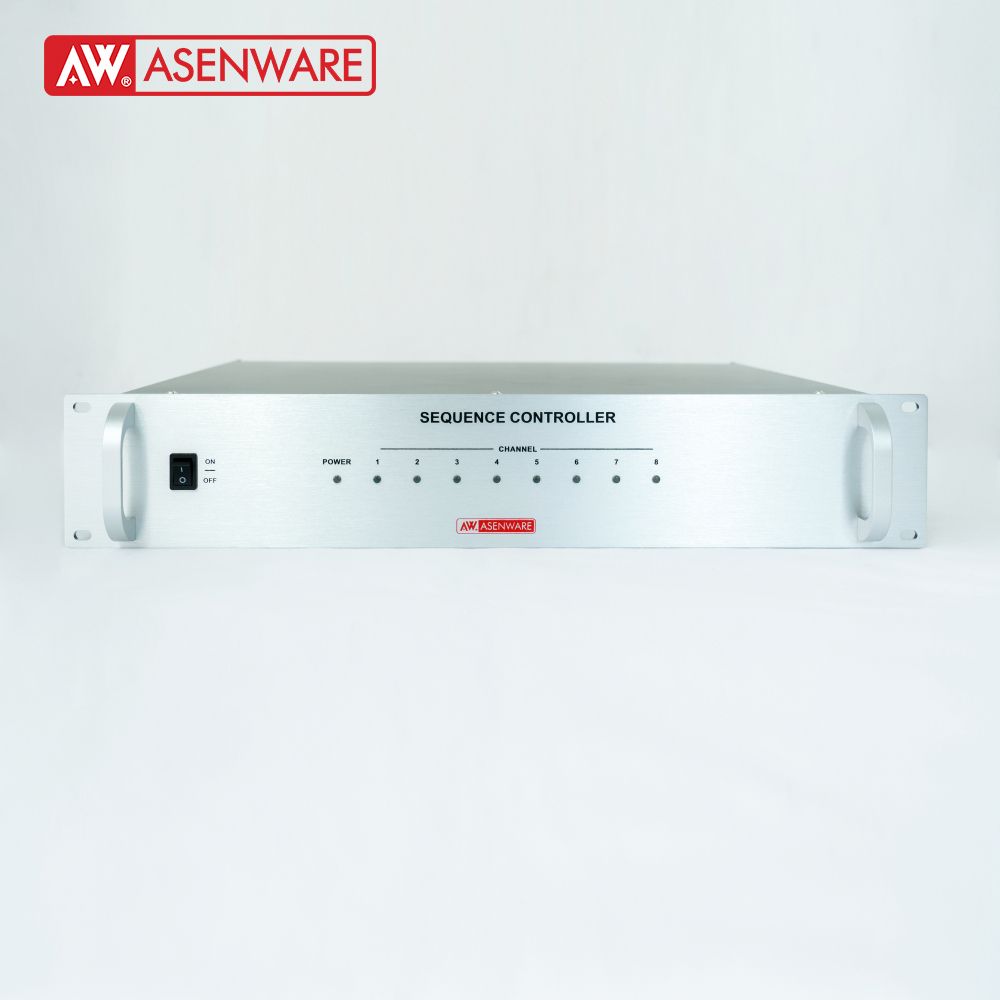

AW-EV608 starts all the equipment one by one from the front to the back when powering on, and shuts down all equipment one by one from the back to the front when powering off. The unified effective management and control of the power equipment ensure the stable operation of the entire system.

Features

1. Independent 8-channel high-power output

2. The maximum output of a single channel is 16A, and the total input current capacityis25A

3. The switching status of eight channels can be operated and displayed by thecontrol panel

4. Suitable for a variety of three-pole power sockets and the two-pole European-styleround-head socket

Technical Specification

Model	AW-EV608
Output Channel	8-channel, universal socket
Output Current	Max 16A/Channel,Total Max 25A
Trigger Mode	Manual sequential start, external short-circuit signaltriggered start
Maximum Input Current	25A
Work Voltage	AC110-240V，50/60Hz
Sequence ON/OFF time	About 1000ms
Operating Temperature And Humidity	-10℃~50℃，≤95% RH
Dimensions (L×W×H)（mm）	485×344×89
