Mini Addressable Fire Alarm Control Panel

Home > Products > Addressable

Description

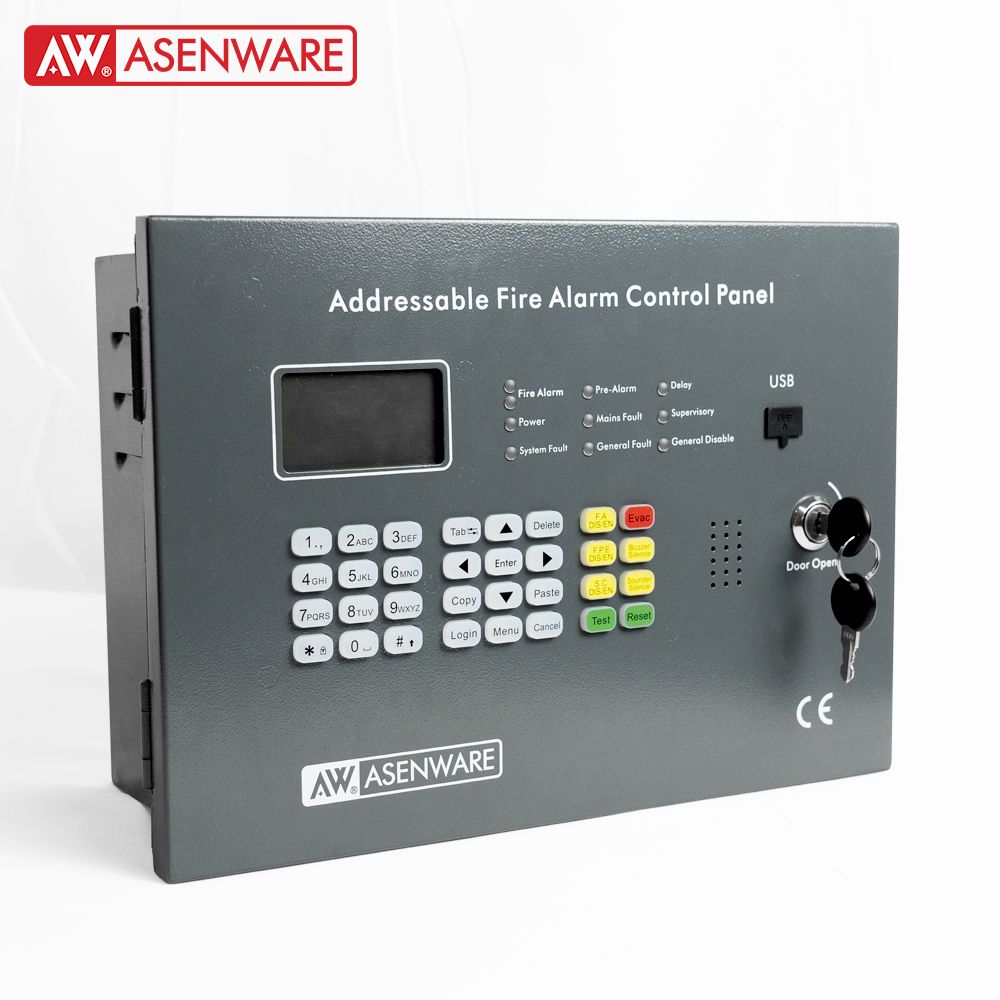

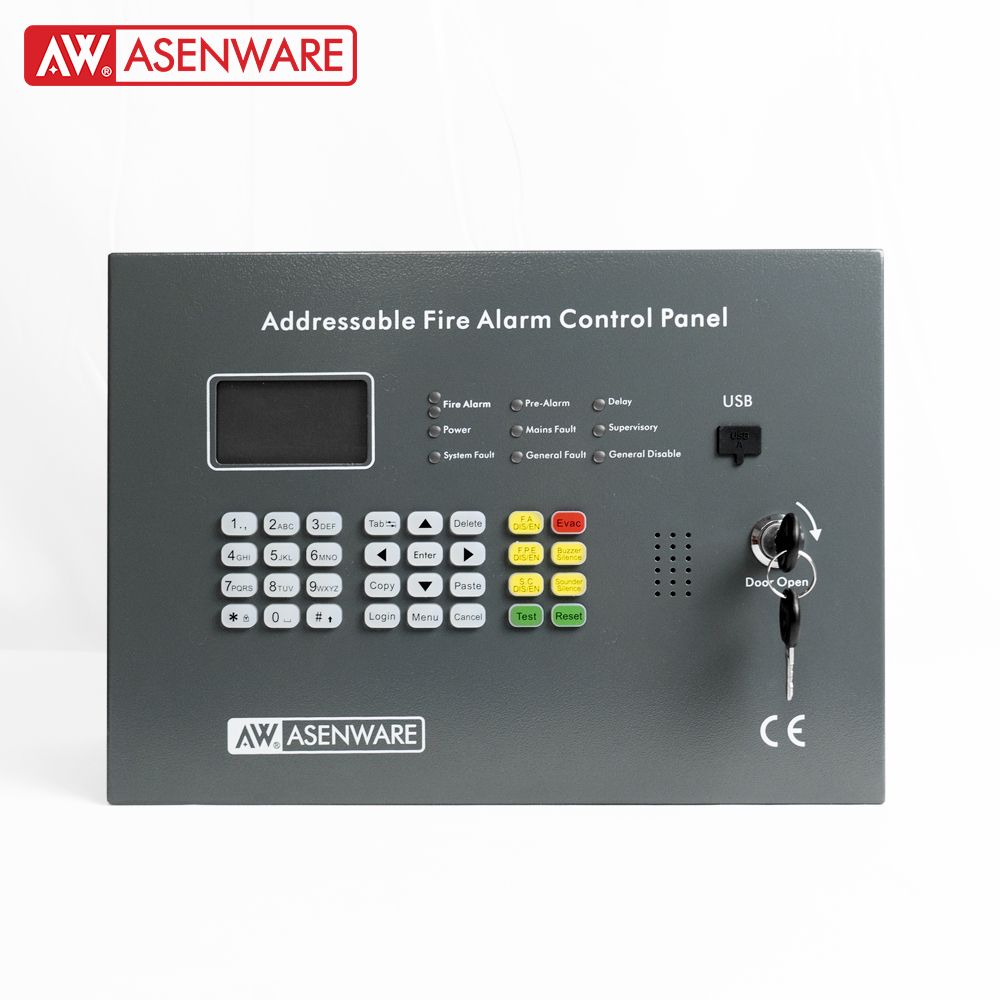

Mini Addressable Fire Alarm Control Panel AW-FP128 adopts 3.2-inch LCD screen, key operation, simple operation, beautiful man-machine interface.
The wired circuit of the machine can be connected to 128 devices, 80 groups of wireless circuits, a wireless circuit can be connected to 20 wireless devices, such as smoke detector, temperature detector, input and output module, etc.
Two kinds of configuration equipment test.
1. the host hand, automatic registration of all the equipment in the wired loop.
2. The computer software configures the device status. 8 hosts CAN communicate with each other for remote control.
An independent linkage group can be set up for devices in each zone. When a device generates an alarm, the device can be activated by strobe based on the zone Link group Settings.

Mini Addressable Fire Alarm Control Panel Features

3.2-inch LCD display screen operation.
All addressable devices use a two-wire system.
A single loop can connect 128 wired addressable devices.
Up to 999 records of history can be saved (save when power off).
There are four access levels.
It has a rechargeable backup battery.
Can simply judge the running status of the machine based on the LED lights.
Automatic search device
Each of the eight hosts CAN be controlled remotely
USB software upper computer to check and set the device status and fire history records

Mini Addressable Fire Alarm Control Panel Technical Parameters

Main power	110 VAC or 220VAC (+20%] 50Hz/60Hz
Batteries	2*12V, 2.3A Lead acid batteries
Battery low-voltage protection	21V
Number of points on each loop	128 pcs
Environmental	Temperature range: -10 to 55°C (14~134°F); Relative humidity:5 to 95%, non-condensing
Fuse for AC power	1A/250V glass tube fuse, slow blow,5* 20mm
Fuse for DC power	10A/250V ceramics tube fuse slow blow 5*20mm
Terminal blocks rating	All terminals rated for 12 to 18 AWG [0.75 to 2.5 mm²)
Size (LWH)	330mm* 235mm* 90mm
