Description

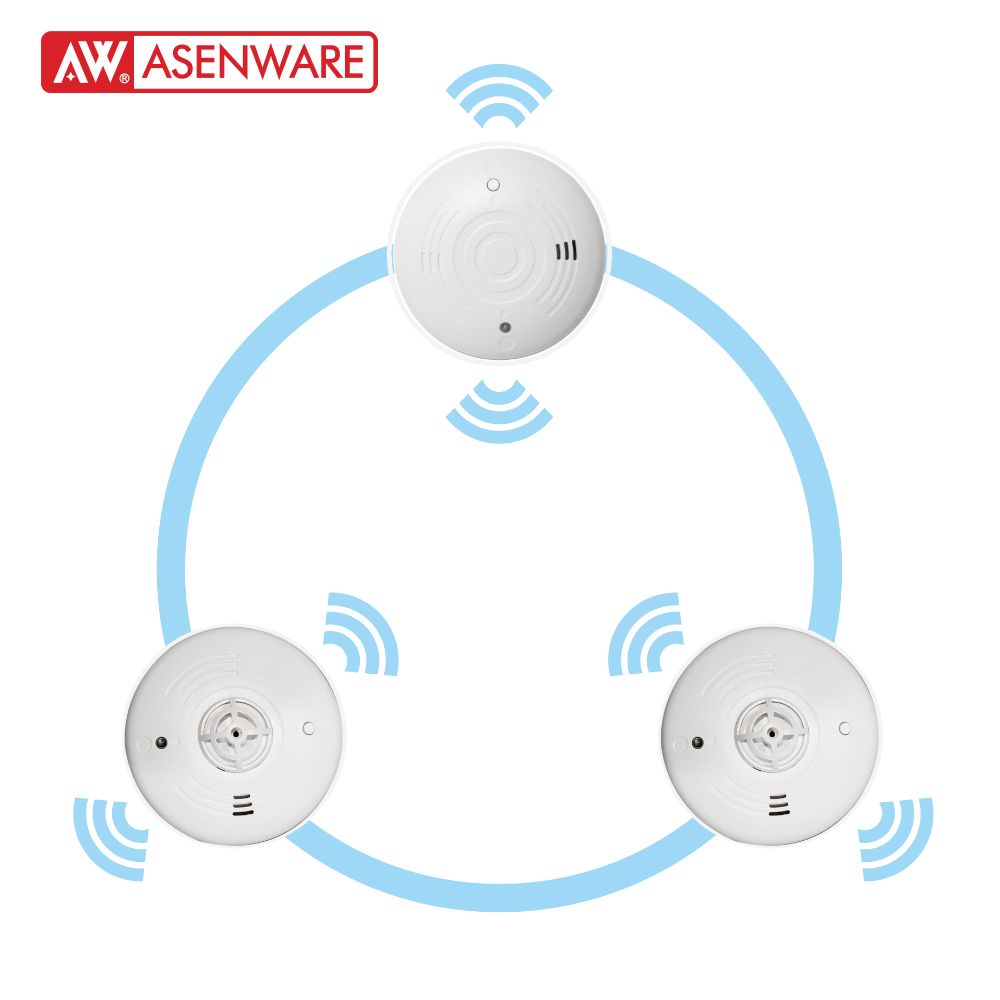

The AW-D603 (Smoke) interlinked wireless detector system uses a fast-response optical sensing chamber. Featuring a wireless network alarm function, this system detector can link with other detectors on the same network to activate alarms simultaneously. The system is powered by a long-life internal battery.

The AW-D604 (Heat) interlinked wireless detector system uses a stable, sensitive temperature-sensing technology. Featuring a wireless network alarm function, this system detector can link with other detectors on the same network to activate alarms simultaneously. The system is powered by a long-life internal battery.

The AW-D605 (Smoke & Heat Combined) interlinked wireless detector system uses a fast-response optical sensing chamber and stable, sensitive temperature-sensing technology. Featuring a wireless network alarm function, this system detector can link with other detectors on the same network to activate alarms simultaneously. The system is powered by a long-life internal battery.

Product Features

1.Surface mounting

2. Full electronic coding

3. LED indicator and buzzer

4. No wire connection

5. Complete functional test with every activation

6. Meets all requirements of latest EN standard

7. LoRa® modulation

Technical Specification

Operating Voltage	3VDC (with battery CR17450/CR17505/CR17455(CR-AGF(compatible with Panasonic ))
Operating Current	Average monitoring status ≤75uA. Average alarm status ≤120mA
Operating Frequency	433MHz(418MHZ-448MHz)
Wireless Transmit Power	+20dB
Indicator	Normal: Flash per minute Alarm (Local): Continuously on Alarm (Linkage): Continuously flash
