Description

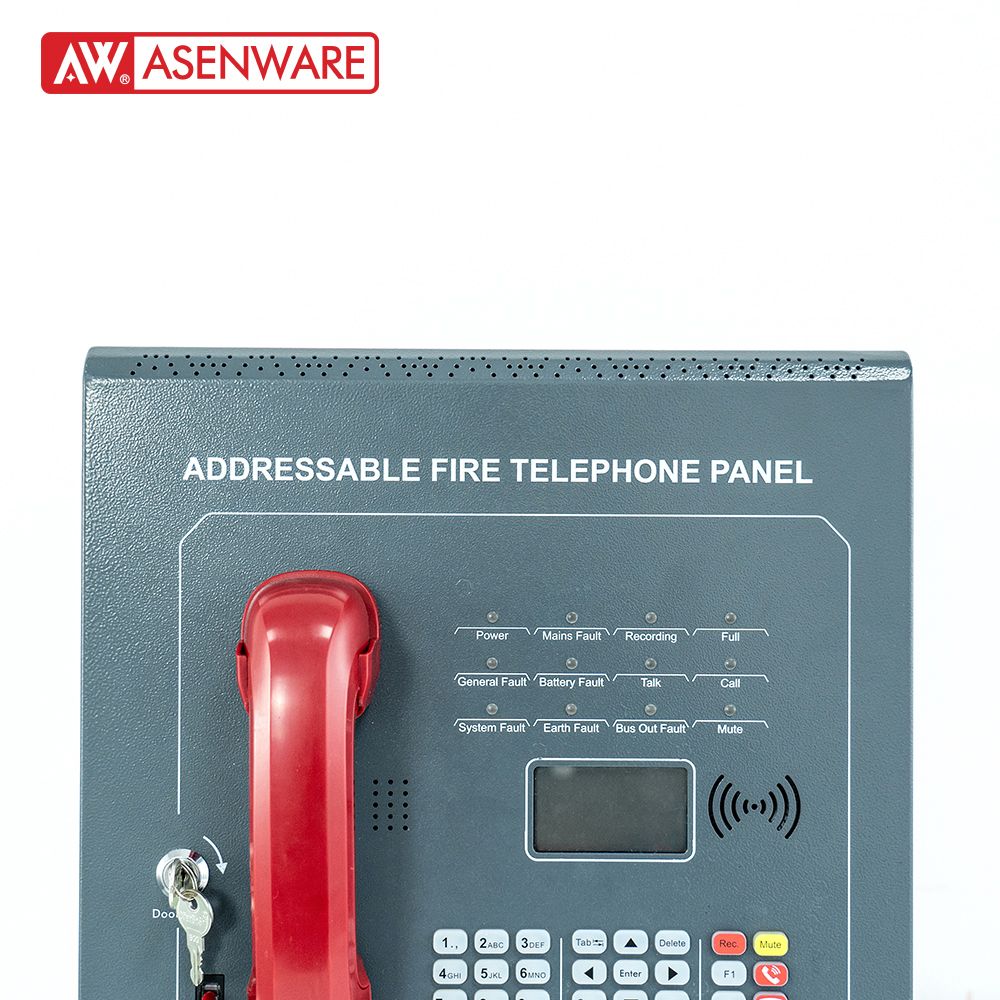

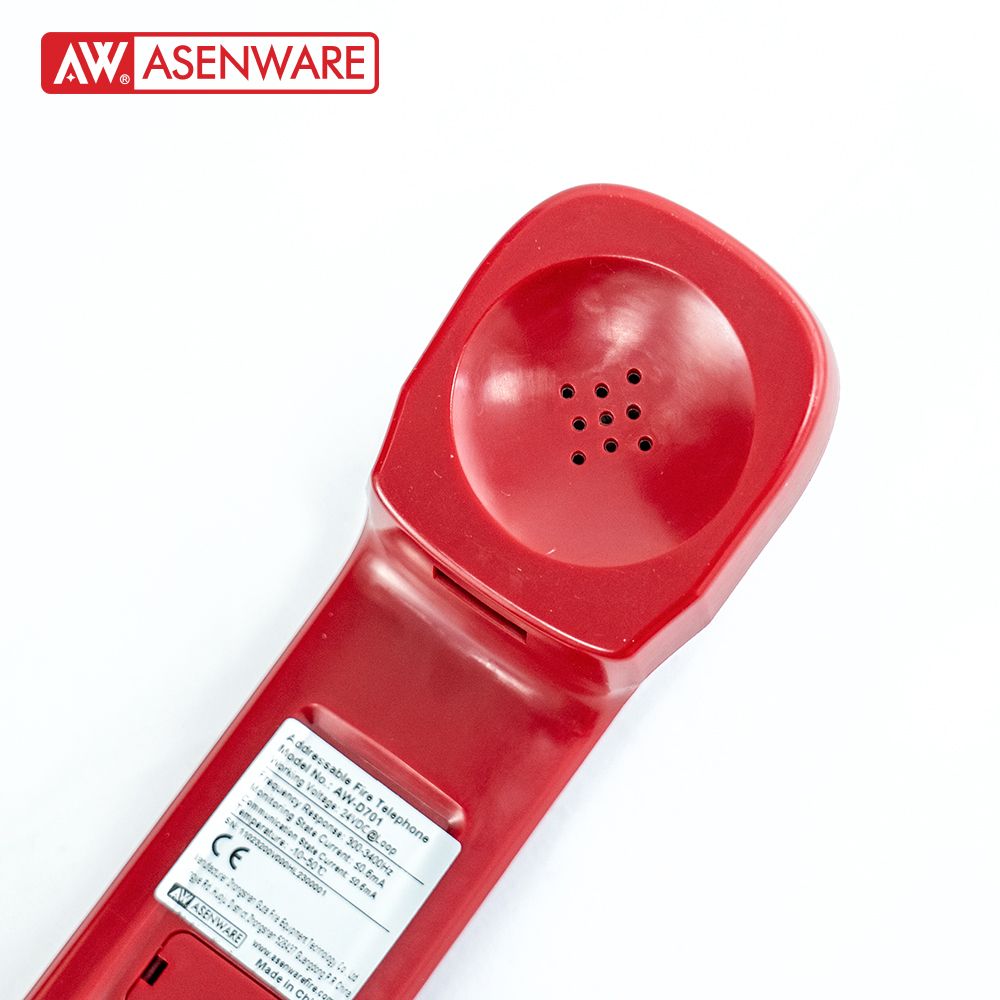

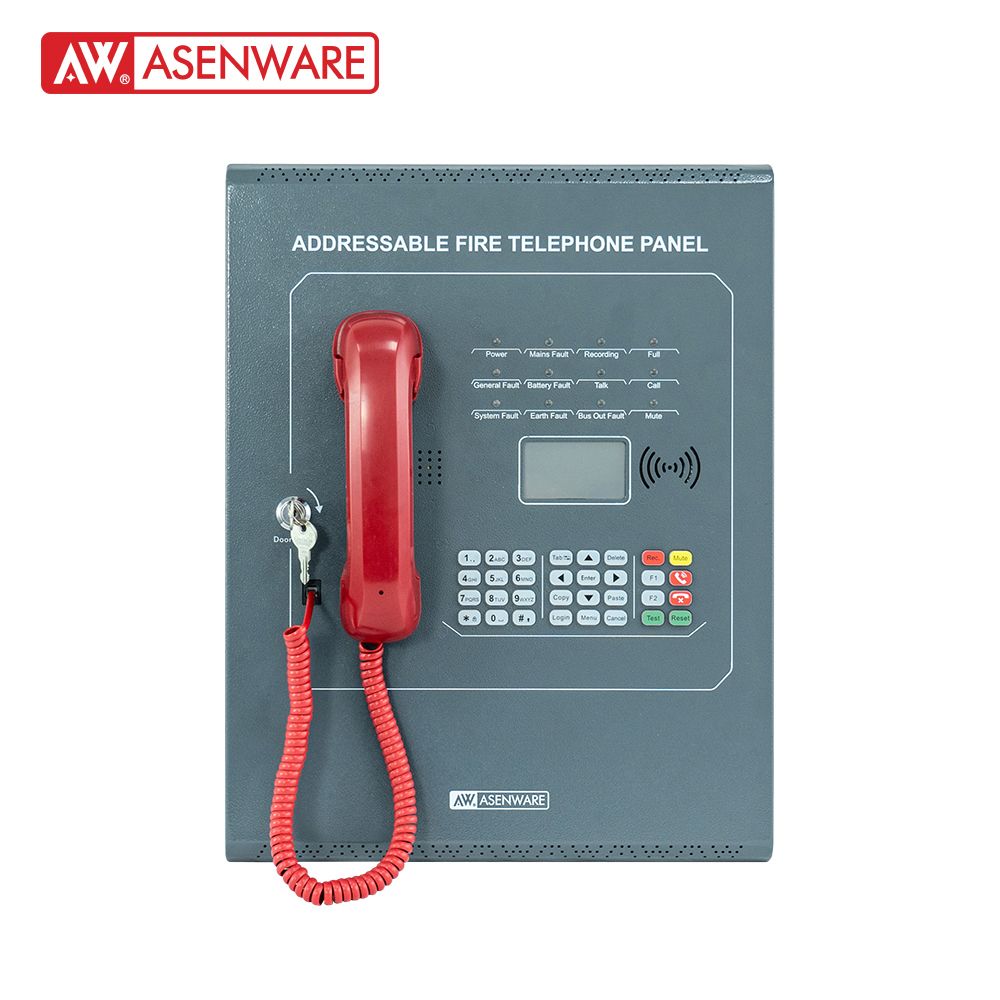

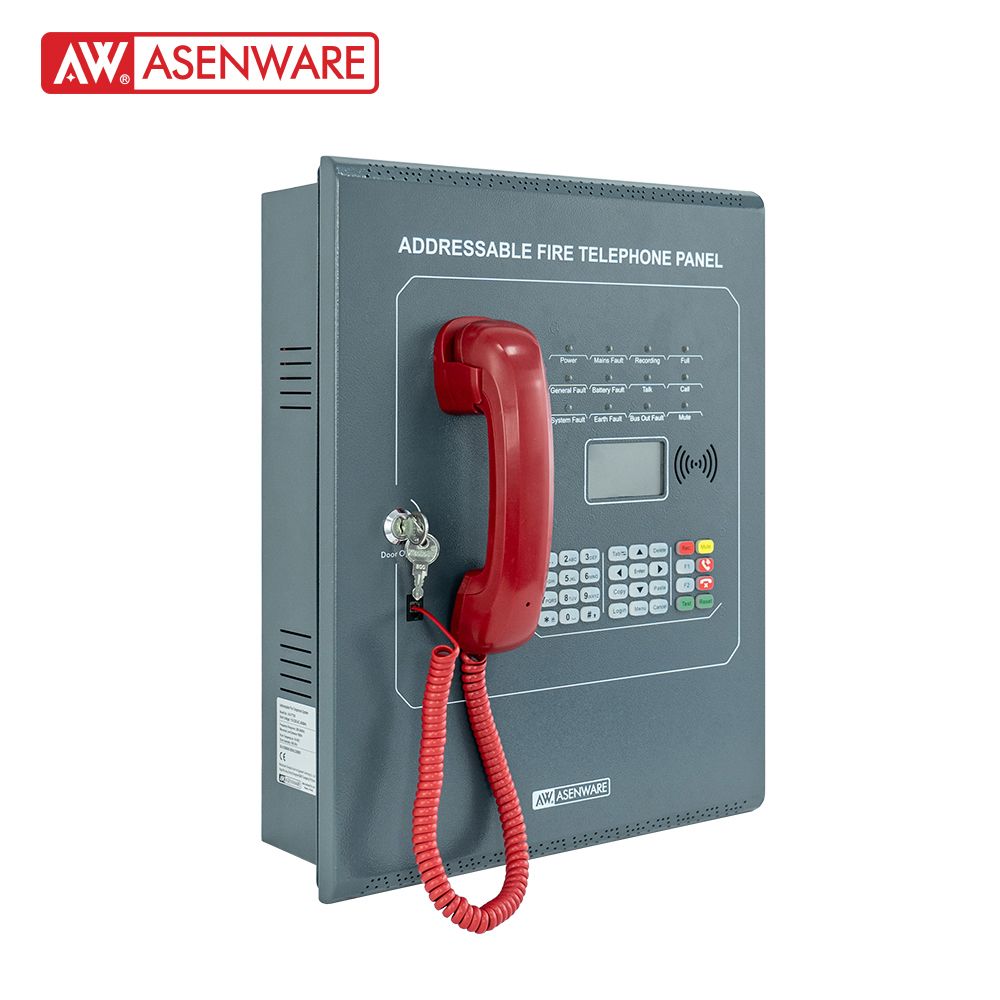

The AW-FT100 serves as a dedicated control panel for fire telephone systems, comprising the panel, addressable fire telephone cabinet (AW-D152), telephone handset (AW-D153), and telephone jack(AW-D154). This integrated system enables rapid manual fire confirmation while providing real-time on-site communication for critical situational awareness. Featuring an optimized industrial design, the control panel incorporates a high-definition dot-matrix display, dedicated multi-color silicone keypad, a high-output external speaker (2120dB), and multi-hour incident recording capability. There are comprehensive interfaces, which support RS485 and CAN communication with AW-EVC systems. The fault output relays ensure precise alarm timing and wide-area coverage. Operational capabilities include 5-way simultaneous conferencing with addressable fire telephone to prioritize emergency reports, 100-extension capacity, and automatic open/short circuit diagnostics for system integrity.

Product Features

1.Two-wire bus communication, simplified Installation

2.Support up to 5-way simultaneous
3.conference over a distance of 1800 meters
4.Supports long-duration calls(>3 hours)
5.Strong load capacity, up to 100 fire telephones

6.Supports fire telephone fault indication Supports link with AW-EVC system

Technical Specification
