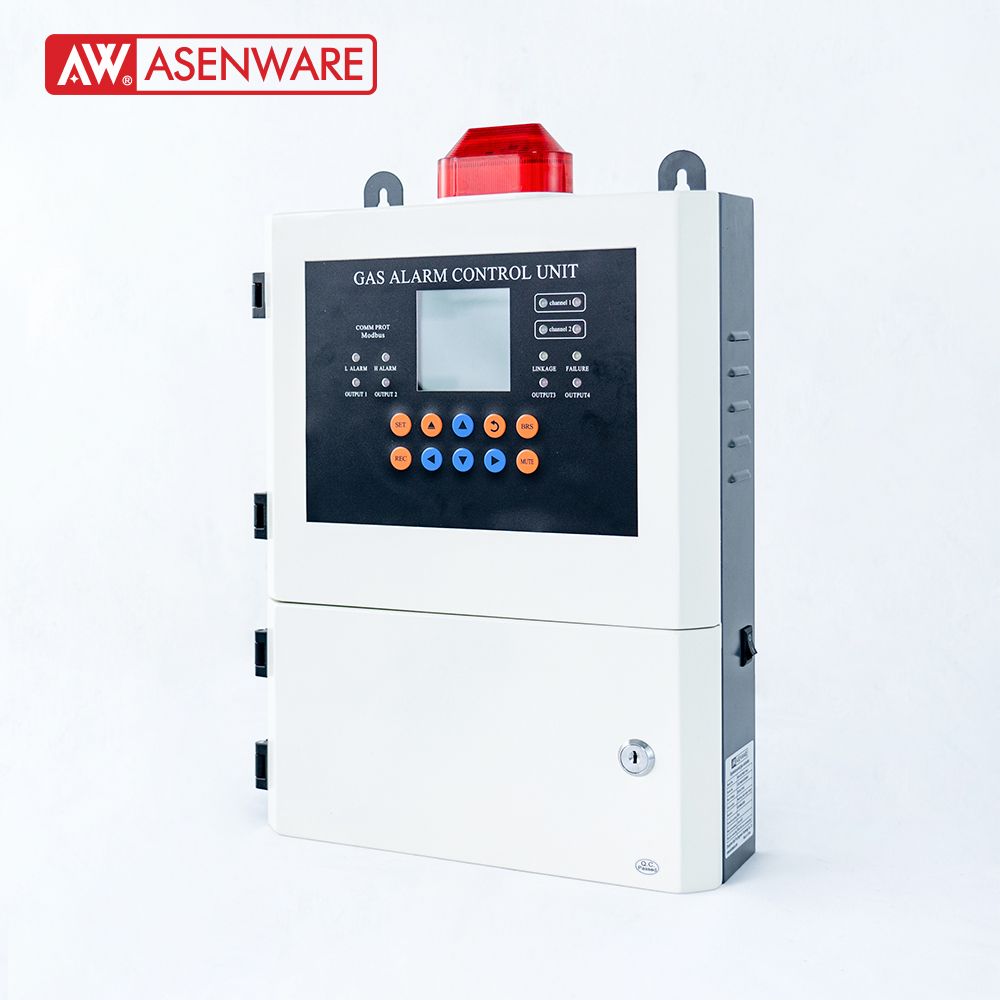

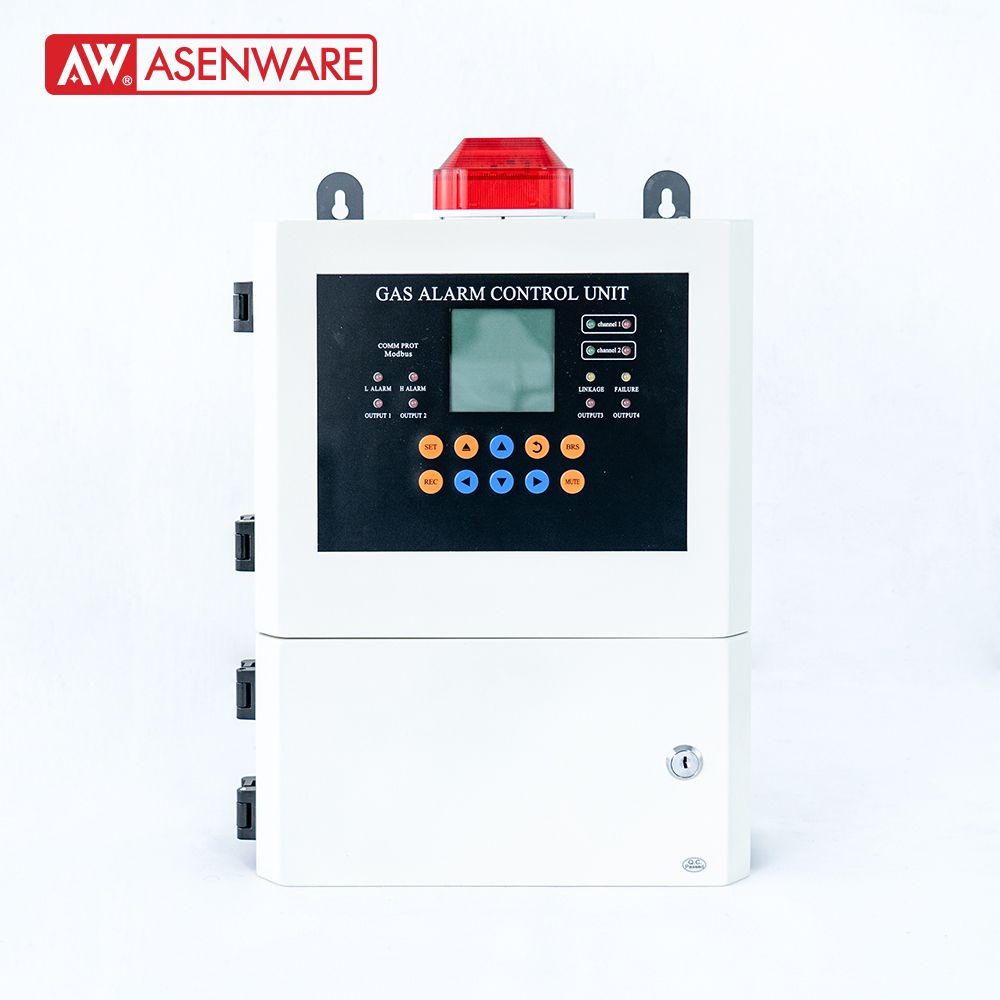

AW-CGD2166EX-Panel Gas Alarm Control Panel,Explosion-proof Fire Alarm System

Home > Products > Explosion-proof

Description

Gas alarm control panel AW-CGD2166EX-Panel is independently developed by our company with practical functions, convenient operation, flammable/toxic gas alarm controller. It can be used with gas detector to form industrial gas alarm system. This product is made of industrial bus, RS485 digital signal is transmitted far away, with strong anti-interference ability and long transmission distance. The controller adopts high performance processor, which can complete communication alarm within 2 seconds. The controller can connect up to 99 detectors, each detector can set two alarm values, one alarm output. At the same time, it can record 1050 pieces of information (including detector alarm, communication failure and detector failure).

Technical Specification

Detection object	flammable/toxic/oxygen gas
Detection range	0-100%LEL/0-N%vol
Detection range	0-N μmol/mol (The range is determined by the gas sensor)
Basic error	<±5% (F..S)
Display type	LCD panel
Content displayed	Gas + measured value +recorded value + fault signal
Alarm type	acousto-optic alarm
Alarm volume	≥80db
Alarm value	High/low alarm value
Communication signal	RS485
Alarm output	Four sets of passive NORMALLY open/normally closed contacts
Alarm output	Contact capacity: 250V/AC 5A
