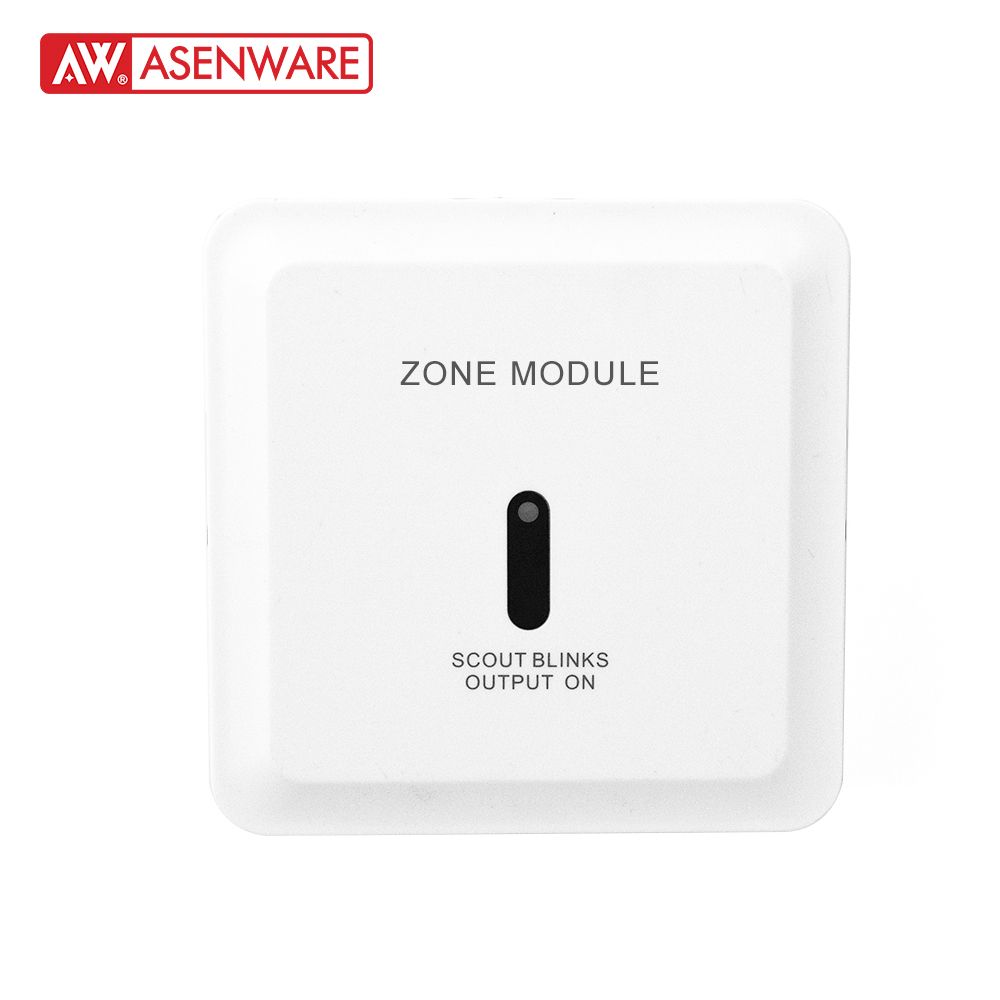

Addressable Zone Module

Home > Products > Addressable

Description

The Zone module (AW-D310 module for short) can be used with an addressable fire alarm control panel. It can be connected with conventional photoelectric smoke detector, conventional heat fire detector or other conventional devices. When the conventional devices give an alarm, the AW-D310 module will send an alarmsignal to the fire alarm control panel through a signal loop.

Features and technical parameters

Loop type: Nonpolar two-wire system
Quiescent current: loop current < 0.5mA ; power current < 15mA
Action current: loop current < 2mA ; power current < 35mA
Loop operating voltage: Loop 20~28V for terminal L1 & L2(non-polar wiring)
Power operating voltage: DC 20~28V for terminal +24V & GND
Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status.
Operating environment: Temperature: －10℃～50℃; Relative humidity: ≤95% (40℃±2℃, without condensation)
End-Of-Line resistor: 4.7kΩ resistor
External dimensions: 86 × 86 × 40(mm)
Weight: about 119g
Executive standard: EN 54-18
