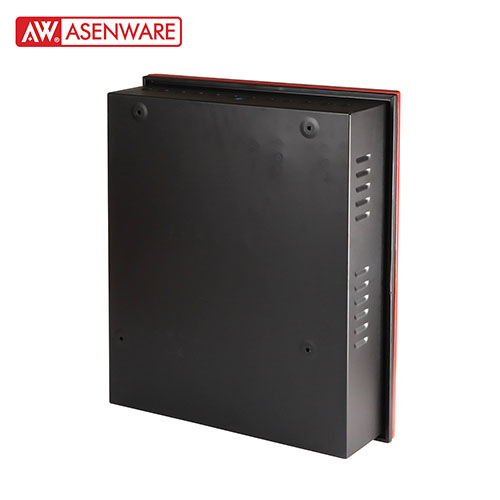

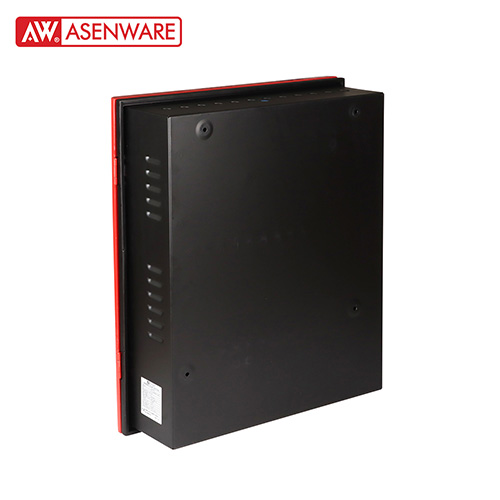

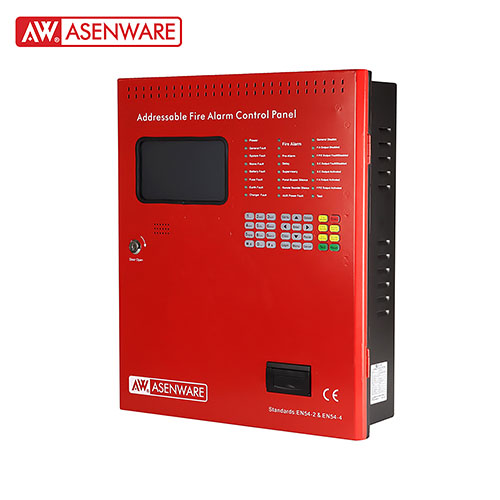

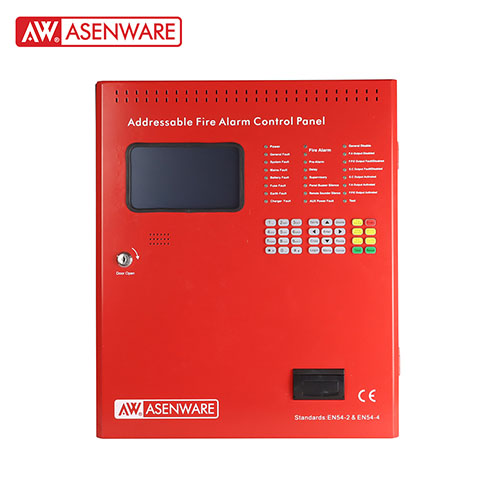

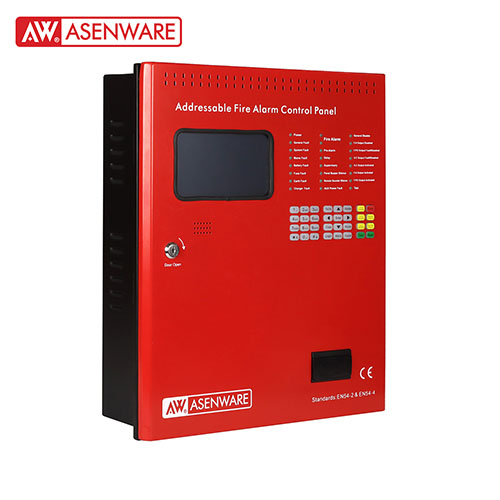

Addressable Fire Alarm Control Panel AW-FP200 (Mutil-8),Two Wire Addressable Fire Alarm System

Home > Products > Addressable

Description

This machine can be connected to 8 loops. Each loop can be connectedto250devices, such as smoke detectors, temperature detectors, input/output modules, each loop can be connected to 10 groups of wireless loops, a group of wirelessloops can be connected to 20 devices, such as smoke detector, temperaturedetector, input and output module, etc.

Two kinds of configuration equipment test.

1. the host hand, automatic registration of all the equipment in the wiredloop.

2. The computer software configures the device status. 8 hosts CAN communicate with each other for remote control. Mobile phone GSM to receive alarm information.

The equipment in each zone can be individually set up a linkage group, andwhena device alarms, it can be activated by strobe according to the Zone LinkGroupsetting. All devices can be configured to different zones independently toactivatethe zones be interconnected.

Addressable Fire AlarmControl Panel AW-FP200 (Mutil-8) Features：

7 inch color LCD display, touch screen operation.
All addressable devices use a two-wire system.
A wired loop can connect 250 wired addressable devices, including 10

groups of wireless loops.

One set of wireless loops can connect to 20 devices.
Max 8 loop cards can be installed.
Up to 999 records of history can be saved (save when power off).
Multiple access levels can be set.
It has a rechargeable backup battery.
Can simply judge the running status of the machine based on the LED lights.
Automatic search device.
Each of the 8 hosts CAN be controlled remotely.
USB software upper computer to check and set the device status and fire history records.
It can bind 10 mobile phone numbers to receive host alarm information.(The GSM module must be added)
